Color Doppler Handheld Ultrasound

Description

Color Doppler Handheld Ultrasound

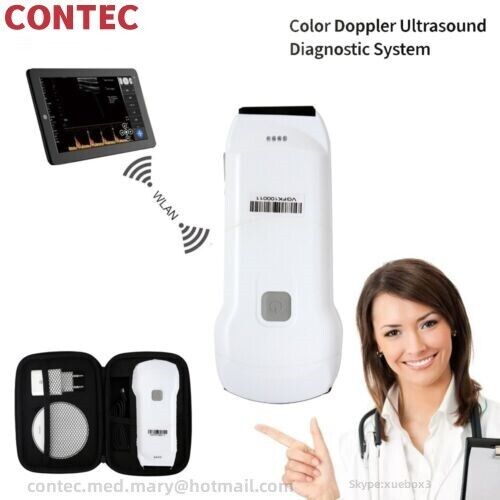

Digital Color Doppler Handheld Ultrasound Convex,Linear Probe WIFI Wireless+bag

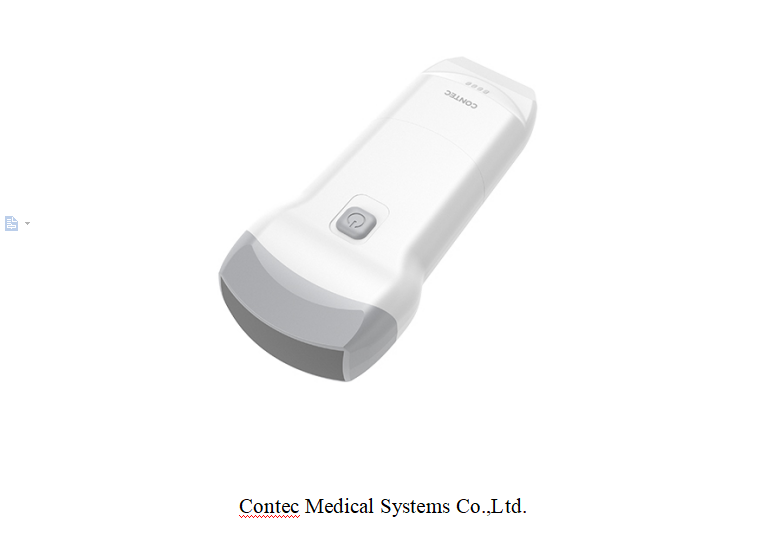

CMS1600A is a handheld dual-probe color Doppler ultrasound diagnostic system composed of a host and a particular control software. It adopts ultrasonic Doppler technology and ultrasonic echo theory to collect blood flow movement, tissue movement information and human organ tissue imaging. Small in volume, easy to operate, which is applicable for use in hospitals, clinics, Center for Disease Control and Prevention, Clinical Laboratory Center, Health Care Center, first-aid stations, nursing stations, and other medical and health institutions, ambulances, etc. It is used for clinical ultrasound examination of human body, including abdomen, obstetrics and gynecology, urology, superficial organs, peripheral vascular, nerve, heart, etc.

2.2 Function

1) Charging mode: wireless, wired (Type-C).

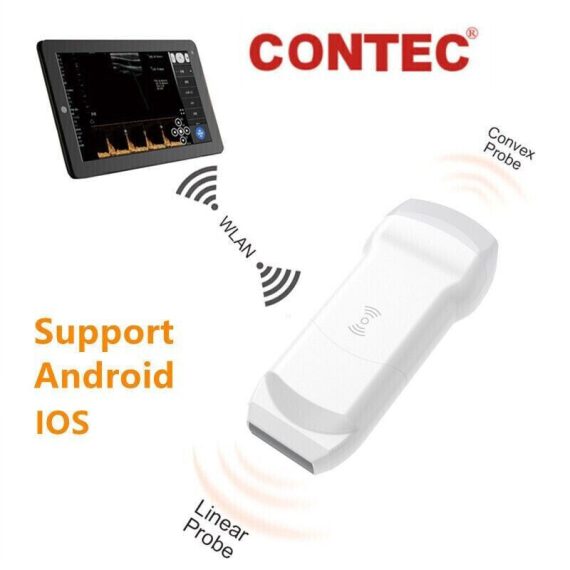

2) The effective transmission distance of WiFi connection (between the main unit and the particular control software) is not less than 10 m (in an open area).

3) Support full-screen display.

4) Image flip function.

5) 8-segment TGC adjustment.

6) Many parameters are adjustable.

7) With patient management system.

8) Cine-loop function

9) Storage function of DICOM file

10) Working mode: B, B/M, C, PW

11) With the measurement functions and software package that can meet the requirements of clinical diagnosis.

2.3 Performance

u Maximum scanning depth: 305 mm

u Cine-loop storage: 1000 frame

u Measurement items: length, circumference, area, depth, heart rate, duration, distance, speed, S/D ratio, obstetric measurement package.

Safety

u Type of protection against electric shock: internally powered equipment

u Degree of protection against electric shock: type BF applied part

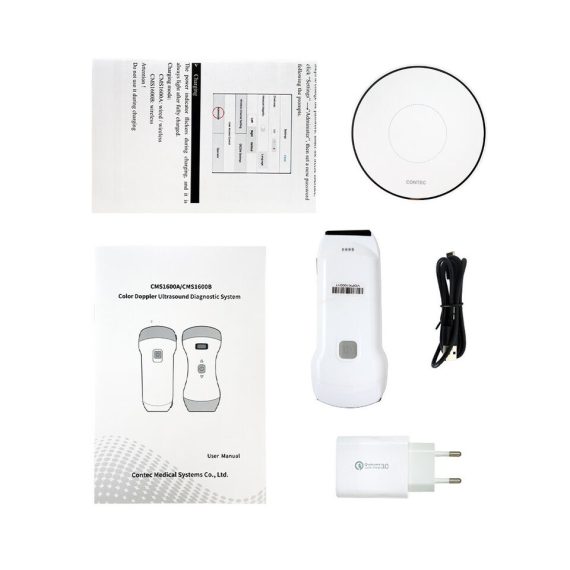

2.4 Accessories

u Particular APP

u One User Manual

u One wireless charging base

u One quick charger

u One data line

2.5 Physical characteristic

Dimension: 124 mm (L) × 54 mm (W) × 24 mm (H)

Weight: less than 1 kg
